Kimpalan Keluli Kimpalan

Penerangan

Kimpalan Keluli Kimpalan is a rigid, open grid made by welding steel bars (bearing bars and cross bars) at right angles to form a strong, one-piece panel. It is a popular and versatile material used for flooring, walkways, platforms, and drainage covers due to its high strength, durability, and corrosion resistance when coated.

Welded Steel Grating Nomenclature

• Bearing Bars – Load carrying, span of grating
• Cross Bars – Connecting bars, runs along width of grating
• Finish – Coating applied-painted black, galvanized
• Serrated – Notching process for non-slip surface
• Widths – Overall dimension measured perpendicular to bearing bars
• Span – Distance running along direction of bearing bars
• Banding – Bar of the same size as bearing bar used to close open ends
• Kick Plate – Flat bar welded to outer edge with projection above grating

Spesifikasi

TECHNICAL DETAILSView All Datasheet

Standard-Duty Welded Grating:
11-W-4 Standard-Duty Grating Load Table
15-W-4 Standard-Duty Grating Load Table
19-W-4 Standard-Duty Grating Load Table

Heavy-Duty Welded Grating:
15-W-4 Heavy-Duty Grating Load Table
19-W-4 Heavy-Duty Grating Load Table
30-W-4 Heavy-Duty Grating Load Table
38-W-4 Heavy-Duty Grating Load Table
Vehicular Load Tables

Standard-Duty Welded Steel Grating

Heavy-Duty Welded Steel Grating

Material Selection For Different Scenarios

Carbon Steel | Stainless Steel | Aluminum

Carbon steel grating suits most industrial applications. Hot-dip galvanizing provides corrosion resistance.

Stainless steel (304/316) handles extreme environments like coastal areas and chemical plants.

Aluminum grating offers a lightweight solution for marine and architectural projects.

Each material delivers specific advantages for different operational conditions and longevity requirements.

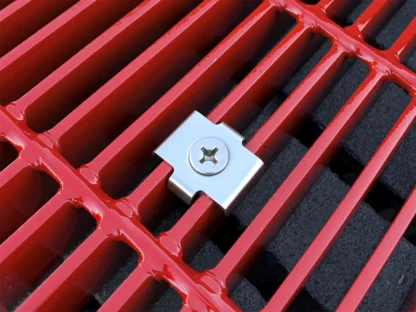

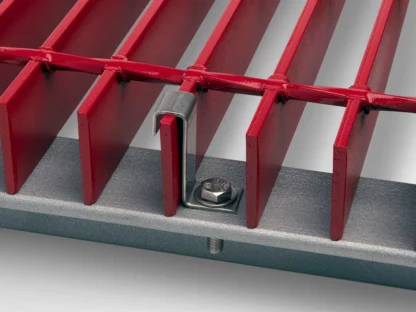

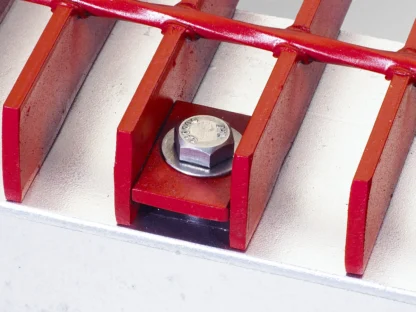

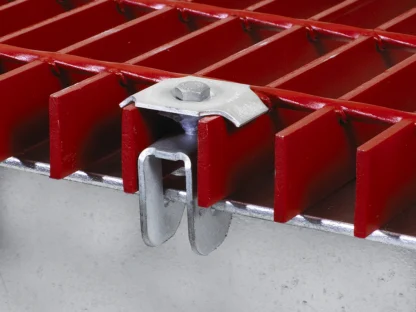

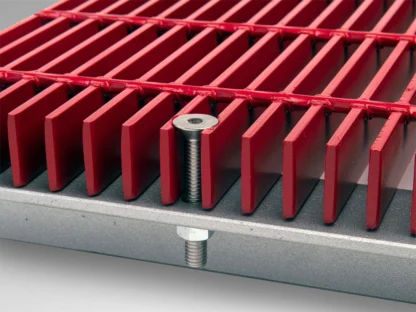

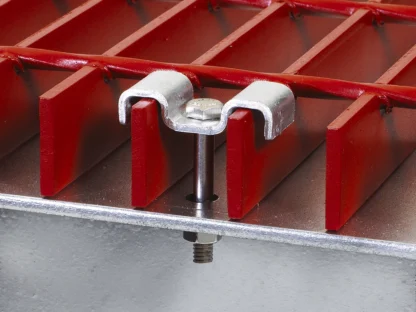

Steel Bar Grating Welding & Fastening Clips

Welding creates superior permanent installations, while mechanical fasteners (also known as grating clips) provide solutions when grating must be removable or welding is impractical.

The recommended weld pattern (illustrated to the right) indicates minimum fastener spacing for pedestrian applications. Vehicular applications typically require additional welding, with specific size and spacing requirements determined by the project’s specifying authority.

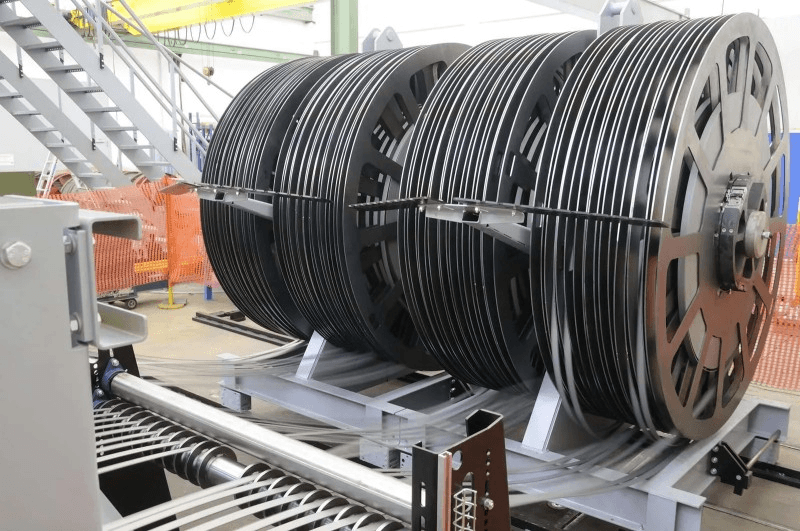

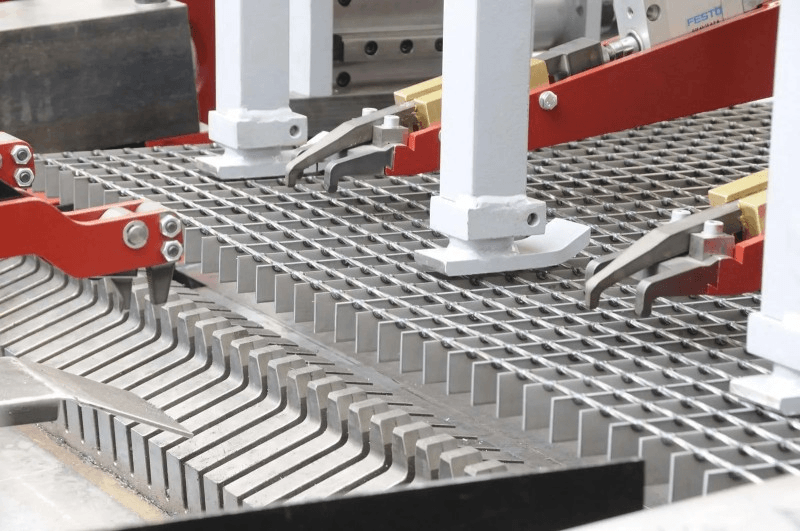

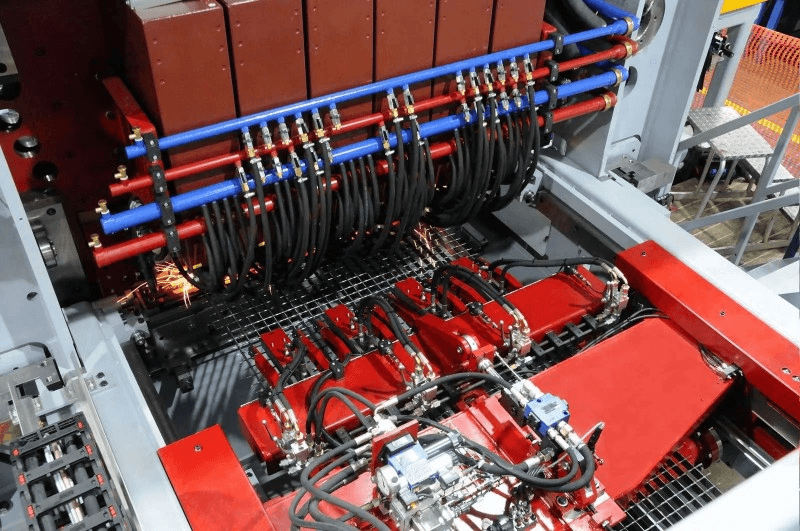

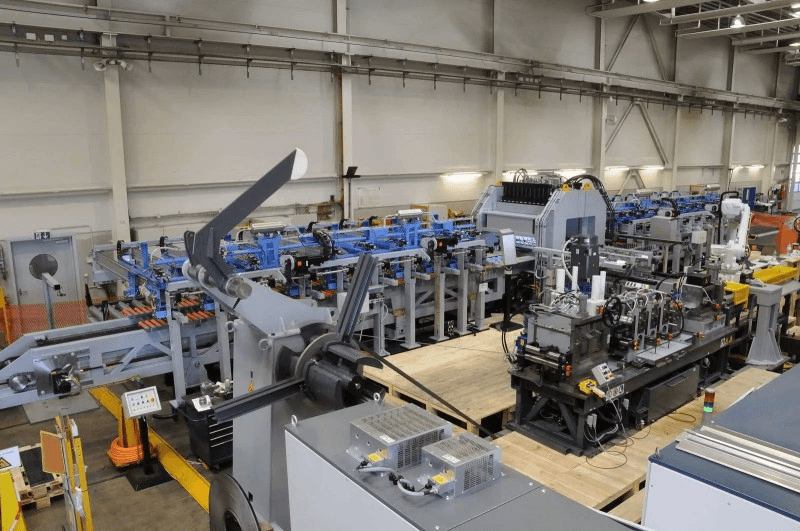

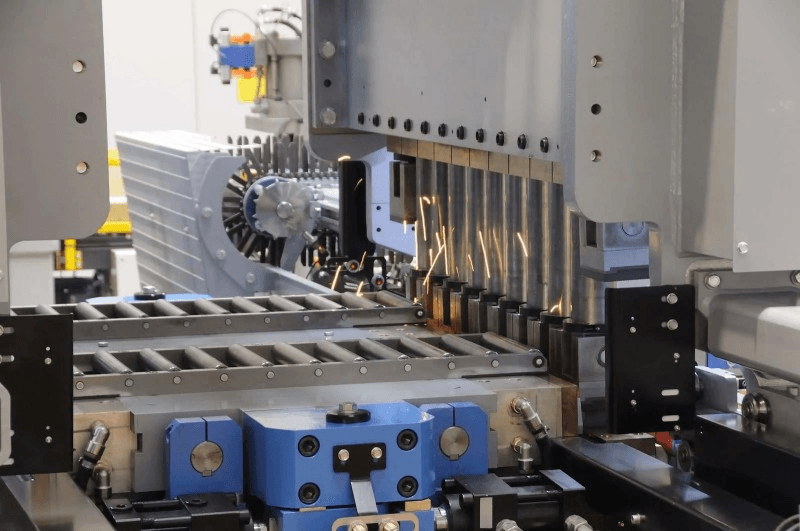

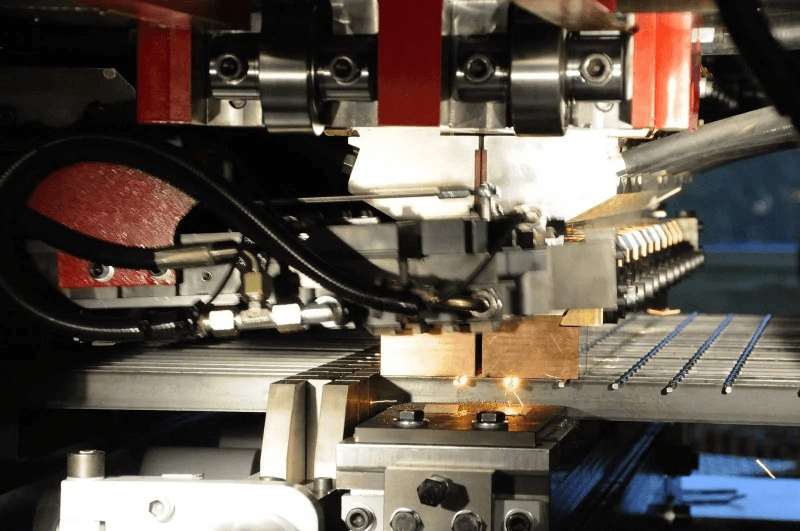

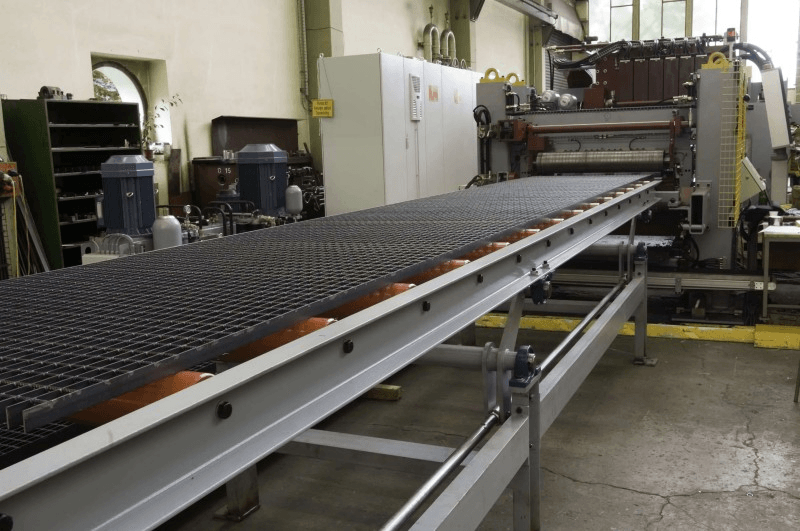

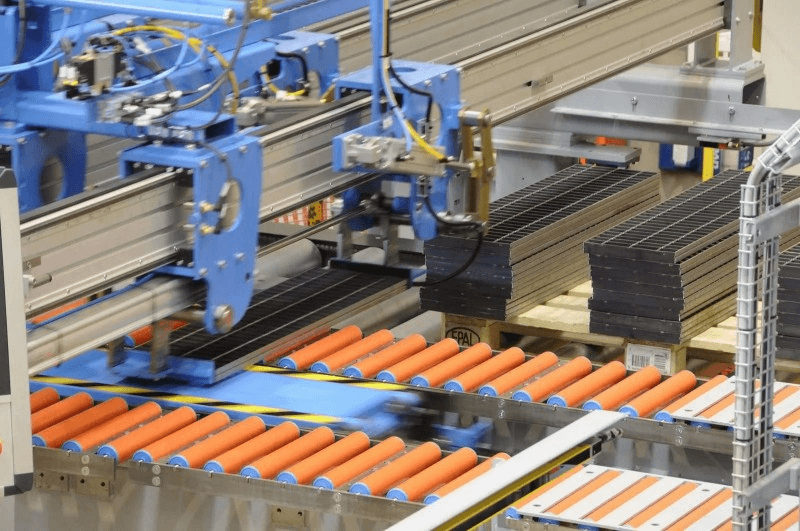

Welded Steel Grating Processing Equipment

Applications Of Welded Steel Grating

Kimpalan Keluli Kimpalan serves countless industrial applications. It provides strong support for heavy equipment. This product allows light and air to pass through. Workers safely walk on these durable panels. Factories install them as operating platforms. They work perfectly in power plants. Wastewater treatment plants use them widely.

Industrial Platforms & Walkways

Standard-Duty Welded Bar Grating creates sturdy work platforms. It supports heavy machinery and tanks. Maintenance crews access equipment easily. These grates serve as safe stair treads. Their anti-slip surface prevents accidents. They form secure walkways between equipment. Oil refineries rely on their strength.

Architectural & Municipal Engineering

Cities choose Heavy-Duty Welded Bar Grating for infrastructure. It makes beautiful commercial building ceilings. Shopping malls use it for ventilation layers. Municipal projects specify it for trench covers. These grates protect tree roots in cities. Pedestrian bridges use them as decking. They reduce structure weight effectively.

Energy & Environmental Protection

Power plants need durable Welded Steel Grating. It forms boiler platforms and walkways. Nuclear facilities use it for maintenance access. Wastewater plants install it everywhere. These grates resist chemical corrosion perfectly. They serve in flue gas purification systems.

Transportation Applications

Ships use Welded Steel Grating as decks. It provides slip-resistant surfaces offshore. Marine platforms choose it for walkways. Some highways install it as guardrails. Ports utilize it for corrosion-resistant platforms. The material withstands seawater environments.

Specialized Applications

Agriculture uses Welded Steel Grating for floors. It creates ventilation in food processing plants. Warehouses install it for mezzanine flooring. Some construction projects need it for scaffolding. Certain industries use it for material screening.
