Paladin Fencing | High-Strength Security & Anti-Climb Solution

Paladin Fencing combines a unique “striped” aesthetic with high-level security. As a specialized manufacturer, we enhance our mesh panels with extra vertical wires and pressed ‘V’ forms for maximum rigidity. This design offers several critical advantages:

  • Anti-Climb & Anti-Cut: Narrow apertures and high-tensile steel deter intruders and resist cutting tools.

  • High Visibility: The semi-transparent pattern allows for easy site monitoring.

  • Factory-Grade Finish: Our 80–100 micron powder coating ensures long-term rust and corrosion resistance.

Sourcing from our China facility guarantees premium security for schools, warehouses, and airports worldwide.

فئات: , , , ماركة: معرف المنتج: 27201

وصف

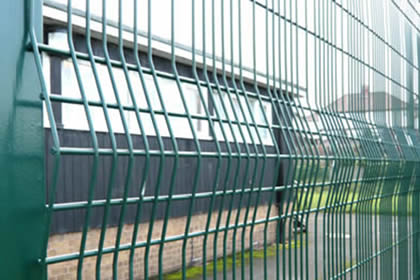

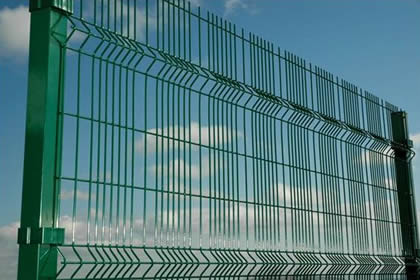

Paladin Fencing stands as an original, striped-type welded mesh system that combines an innovative aesthetic with unyielding anti-climbing and anti-cutting performance. As a specialized fencing manufacturer, we utilize high-precision welding technology to incorporate extra vertical wires and a distinctive crimped panel design. By pressing “V” forms that contain additional 4mm diameter wires across the full panel width, our factory-engineered panels offer a high-rigidity barrier that effectively deters intruders while maintaining a sophisticated appearance.

Features & Benefits of Paladin Fencing

The Paladin system is widely recognized for its “stripe effect,” created by varying the spacing of the vertical wires. This design offers several critical advantages:

  • High Strength & Rigidity: The integrated “V” beams provide exceptional structural stability, preventing the mesh from sagging or warping under pressure.

  • Superior Visibility: The semi-transparent mesh pattern ensures clear lines of sight for security cameras and personnel, leaving no place for intruders to hide.

  • Anti-Climb & Anti-Cut: The narrow mesh apertures make it nearly impossible to gain a foothold, while the high-tensile steel wires resist standard cutting tools like pliers and wire cutters.

  • Exceptional Corrosion Resistance: We apply a thick, 80-100 micron plastic powder coating over a galvanized substrate, ensuring the fence remains rust-free in diverse environmental conditions.

  • Rapid Installation: Compared to traditional security barriers, the Paladin system allows for a significantly faster assembly process, reducing on-site labor costs.

Common Specifications

ملكنا integrated production facility maintains strict quality control over every specification to ensure international compliance:

ميزةStandard Specifications
Panel Width2500 mm or 3025 mm
Panel Height900 mm to 2400 mm (0.9m to 2.4m)
Mesh PatternVariable: 12.5 × 50 mm (small) and 50 × 50 mm (large)
قطر السلك3 mm (Standard); 4 mm (Within ‘V’ beams)
V-Beams2 ‘V’ forms for 0.9m-1.8m panels; 3 ‘V’ forms for 2.0m-2.4m panels
المعالجة السطحيةPlastic coated (Green RAL 6005 standard or custom colors)

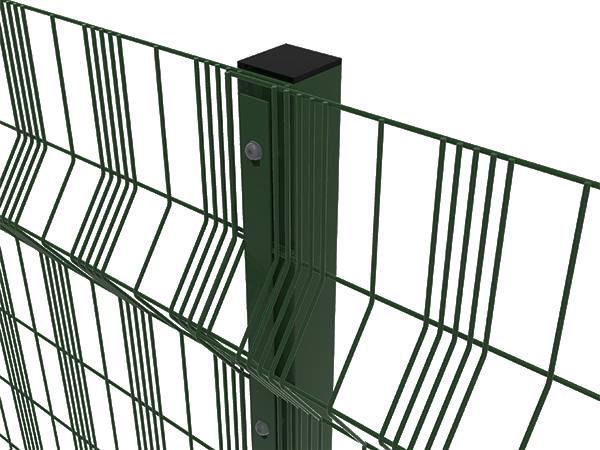

Post Sizes60 × 40 mm, 60 × 60 mm, or 80 × 60 mm with durable caps

Note: We also offer a heavy-duty variant with 4mm vertical and 5mm horizontal wires for high-security applications.

Table-1: Paladin Mesh Fencing system Specification

ارتفاع السياجحجم اللوحةBeamsInter clampsCorners Clamps
900 ملم925 × 3025 mm236
1200 mm1240 × 3025 mm248
1800 mm1850 × 3025 mm2510
2000 mm2000 × 3025 mm3612
2400 mm2440 × 3025 mm3714
بريد60 × 60 × 2.00 mm and 60 × 80 × 2.5 mm

Installation Guidance

To accommodate different terrains, we offer two primary installation types through our factory-direct supply:

  1. Soil Installation (Dig-in): Posts are set directly into the ground with concrete footings for maximum stability in natural landscapes.

  2. Concrete Installation (Bolt-down): Utilizing base plates and heavy-duty bolts for secure attachment to hard surfaces.

Mounting Options: Choose between flat bars أو specialized clamps (available in plastic or metal) depending on the required security level and environmental conditions.

التطبيقات

Because it balances high security with a decorative finish, Paladin mesh fencing is the preferred choice for:

  • Education & Public Spaces: Schools, playgrounds, and parks.

  • Residential & Estates: Private housing developments and estates.

  • Industrial & Commercial: Warehouses, factories, and commercial centers.

  • Critical Infrastructure: Airports and construction sites.

  • Agriculture: High-end farm perimeters.

Paladin Fencing | Made In China | Supply to Worldwide

Sourcing your Paladin Fencing from our Chinese manufacturing facility guarantees a product that meets global standards for security and durability. We operate high-capacity automated welding lines, allowing us to fulfill large-scale infrastructure orders with precision and speed.

  • Wholesale Pricing: Direct-from-factory rates for global distributors.

  • Customization: Bespoke heights, wire gauges, and RAL colors available.

  • Expert Logistics: Seaworthy packaging and reliable shipping to any major port.
