وصف

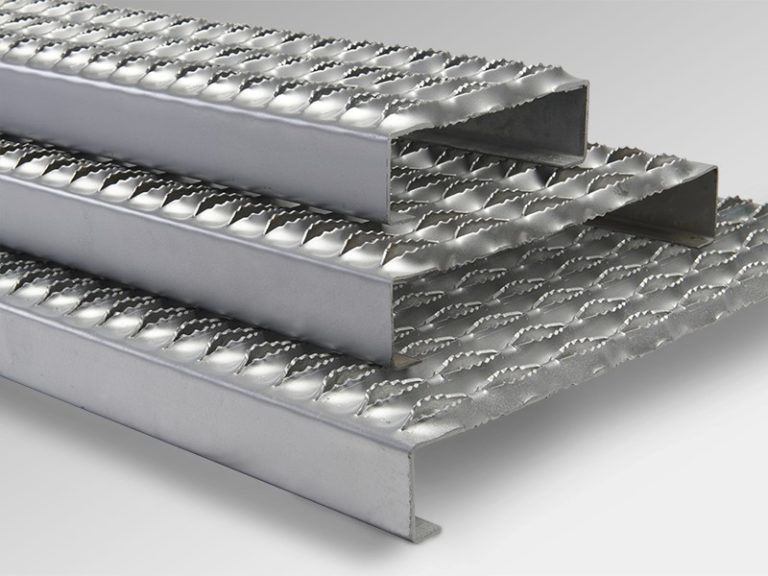

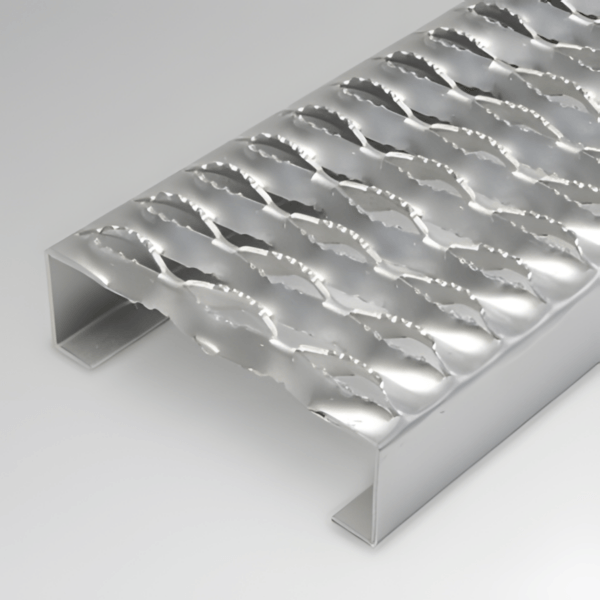

Grip Strut leads the safety grating industry with its versatile, one-piece metal plank design. This product features unique diamond-shaped openings and formed side channels. A heavily serrated, diamond matrix walking surface provides maximum multi-directional slip resistance, significantly enhancing workplace safety. With approximately 35% open area, the grating allows fluids and ice to pass through easily. Customers may request non-serrated surfaces for specific applications.
Grip Strut Safety Grating Details
العرض والأعماق
Grip Strut planks come in a broad range of widths and depths to meet various application and load requirements.
العرض القياسي يشمل:
2 Diamond (4 ¾” wide)
3 Diamond (7” wide)
4 Diamond (9-1/2” wide)
5 Diamond (11-3/4” wide)
8 Diamond (18-3/4” wide)
10 Diamond (24” wide)
Standard channel depths include 1-1/2”, 2”, 2-1/2”, and 3”.
We stock standard lengths of 10’ and 12’, and provide custom lengths upon special request.

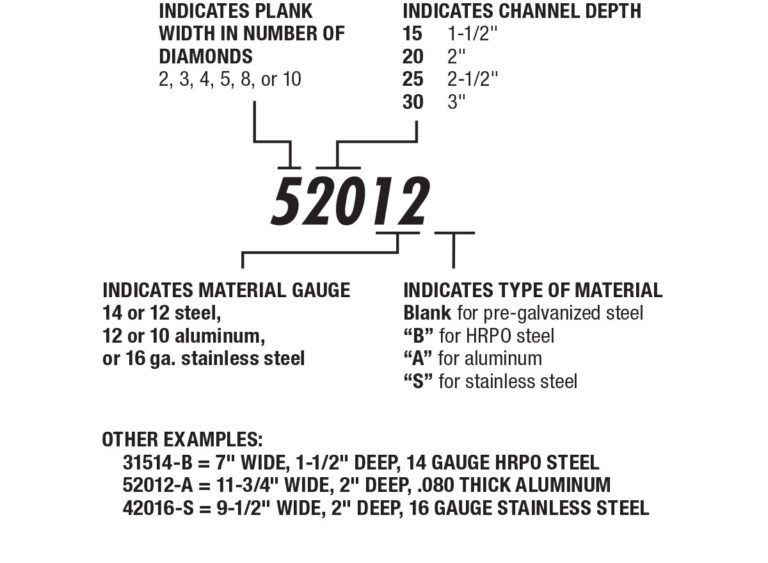

How to Order Grip Strut
مواد
Choose from these material options:
Pre-galvanized steel, ASTM A924 G90, 14 or 12 gauge
HRPO uncoated steel, ASTM A1011, 14 or 12 gauge
5052-H32 aluminum, ASTM B209, 12 gauge (.080) or 10 gauge (.100)
304 or 316L stainless steel, 16 gauge
Additional Grip Strut Products

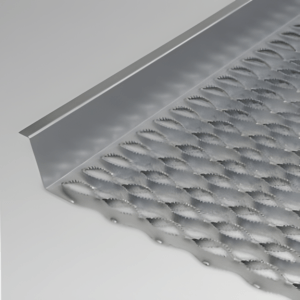

Beyond plank grating, the Grip Strut surface also features in OSHA-compliant walkway channels, stair treads, ladder rungs, floor resurfacing materials, and Heavy Duty Grip Strut products. For more details, please refer to the related products section below.
Grip Strut Sizes & Options and Load Tables
 | Click to check out: |
قبضة تبختر السحابات

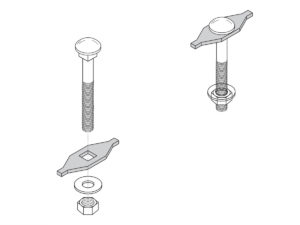

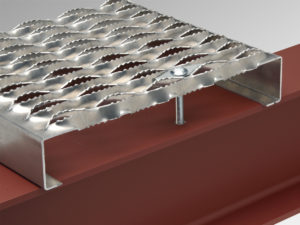

قبضة تبختر الماس غسالةالجزء رقم 12262 |  |  |

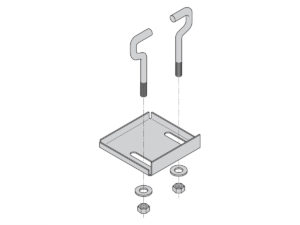

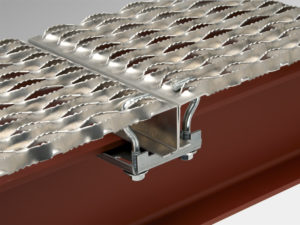

Anchor Clamp AssemblyPart No. ACA-15 |  |  |
