سياج الحامية systems provide a premium, medium-security solution for demanding industrial and commercial properties. As a leading manufacturer, we craft these panels from high-strength pre-galvanized steel tube materials to ensure long-term durability. ملكنا factory utilizes high-frequency welding technology to join hot-dip galvanized steel strips, creating a robust steel tubular fence. These steel fencing panels feature heavy-duty pressed spears at the top to deter unauthorized access effectively.
What is Garrison Fence?
أ Garrison fence (as known as الرمح أعلى السياج) consists of vertical pickets punched through horizontal rails and welded for superior strength. This design creates a much stronger barrier than traditional face-welded alternatives. Our production facility uses silicon bronze for all welds to enhance rust resistance. This advanced process addresses common corrosion issues found in wrought iron. Consequently, it offers a cost-effective alternative to expensive stainless steel options.

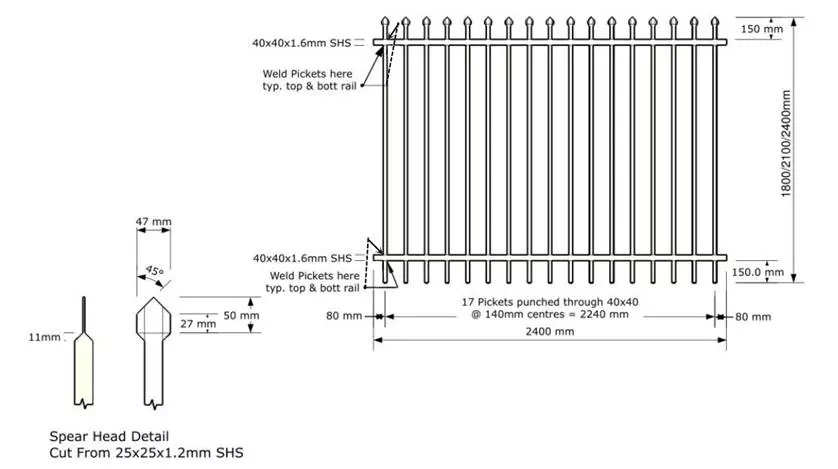

Specifications of Garrison Fence

| Items | سور | بريد |
|---|---|---|
| Size(mm) | 2400 x 1800, 2400 x 2100, 2400 x 2400, customizable | 65 x 65 x 2.0 x 2400 |
| Weight(kg) | 47.58 | 9.5 |
| ينهي | Hot-dip galvanized, or G90 material + spraying | |
| Welding | Silicon Bronze, Stainless steel | |
| Other | 1. The size of the garrison fencing horizontal pipe is 40*40*1.6 wall thickness, and the quantity is 2 pieces. | |
| 2. Fence tube size 25*25*1.2 wall thickness, quantity 17 | ||
| 3. Column size 65*65*2.0 wall thickness. | ||
We maintain strict quality standards to ensure every Steel Fencing Panel meets international requirements:
- Horizontal Rails: 40 mm x 40 mm steel tube with punched holes.
- Security Feature: Strongly pressed spear tops to obstruct criminals.
- Compliance: All powder coatings follow the AS/NZS 4506-1998 standard.

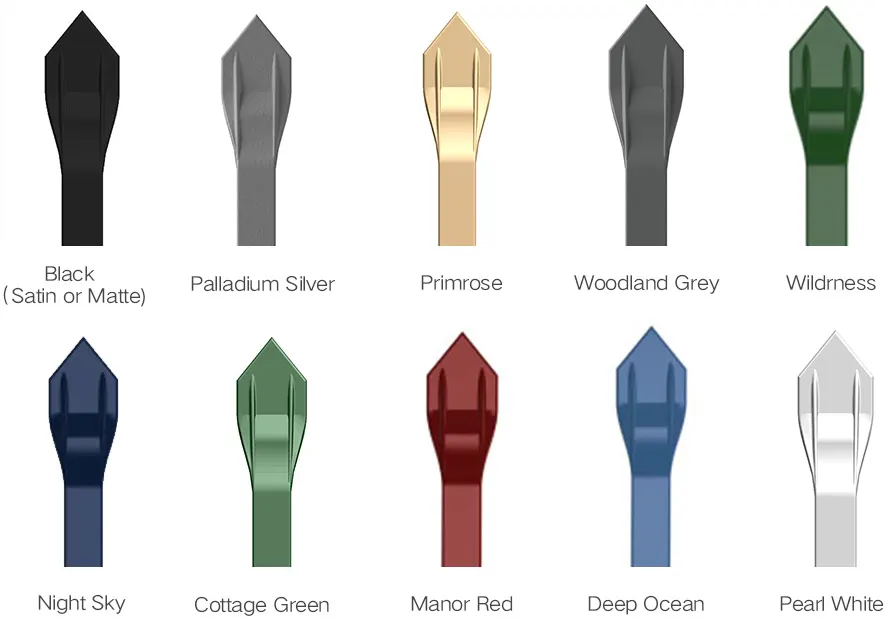

Multiple Color Options of Steel Tubular Fencing
كمحترف سياج الحامية company, we offer a wide variety of aesthetic choices. Our in-house coating line provides standard architectural colors like black and green. We can also customize special colors to match your specific project branding. These vibrant finishes maintain their brilliance and protect the underlying steel for decades.

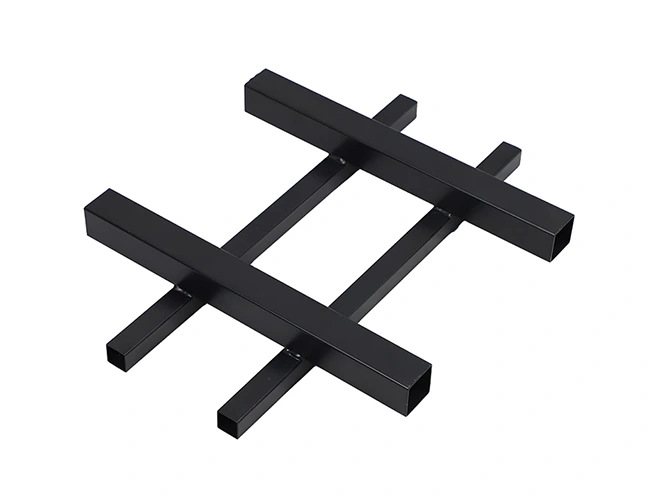

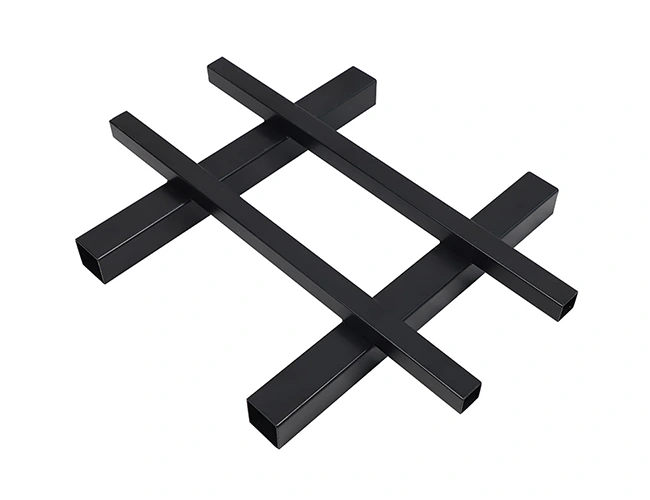

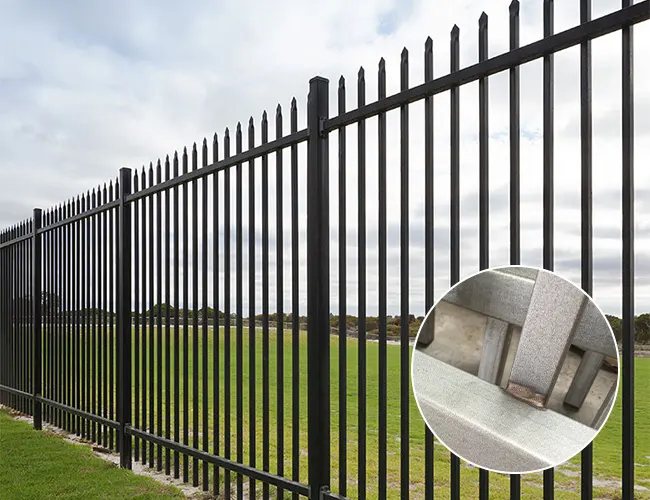

Different Welding Processes of Steel Tubular Fencing

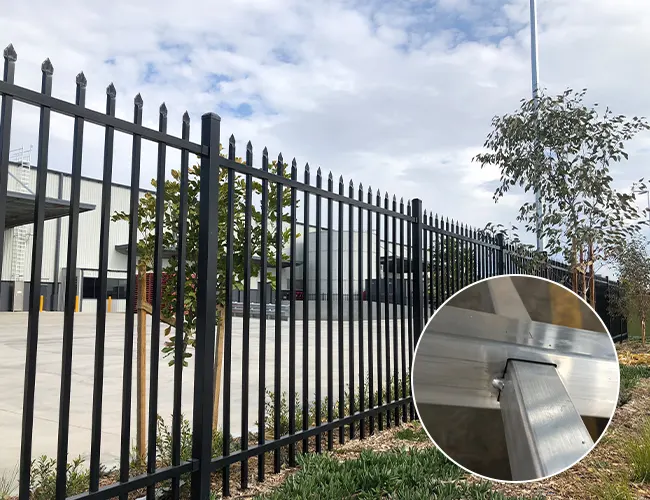

Unlike aluminum spear-top fences, we weld our pickets through the rails rather than onto the face. This makes the steel tubular fence more ornamental and significantly more durable. The unperforated rails prevent internal water collection. This makes our fencing ideal for high-humidity environments where corrosion is a major concern.

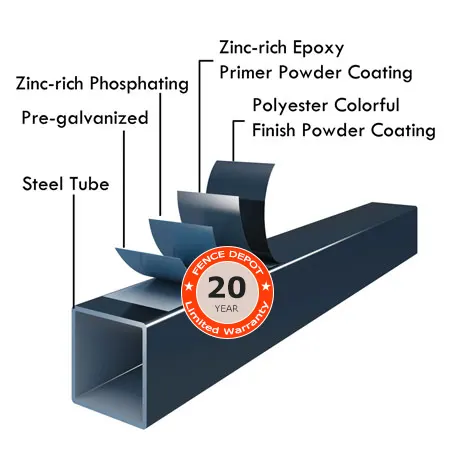

Carbon Steel & Galvanizing Process & Powder Coating

We use a complex multi-stage treatment process to guarantee a 20-year lifespan:
Zinc Integration: The alloy layer seamlessly bonds with the steel matrix and pure zinc.
Phosphating: A zinc-rich pretreatment improves powder adhesion and anti-corrosion properties.
Epoxy Primer: This layer protects all welds and cut edges from rust.
AkzoNobel Coating: We apply premium polyester powder for excellent scratch and weather resistance.
Garrison Fence | Made in China | Supply to Worldwide

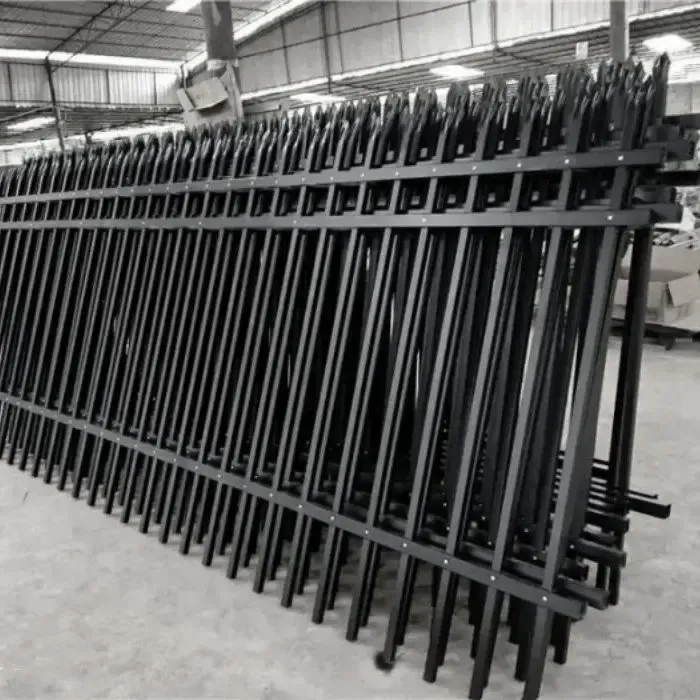

Sourcing your سياج الحامية from our Chinese facility ensures high-quality engineering at wholesale prices. We manage the entire supply chain to deliver reliable security solutions globally.
صيانة منخفضة: We fully galvanize all components to minimize upkeep costs.
سهلة التركيب: Our user-friendly panel design allows for efficient on-site assembly.
Global Logistics: We provide secure packaging for safe transit to any international port.
