Military Defensive Bastion Barriers serve as the cornerstone of modern perimeter protection, providing a rapidly deployable, modular solution for fortification and safety. As a premier defensive barrier factory, we manufacture these multi-cellular systems using high-tensile wire mesh lined with heavy-duty geotextile. Users simply fill these units with locally available sand, earth, or gravel to create a robust wall against ballistics and environmental threats.
تحديد
Our factory-direct production ensures that every unit meets strict military-grade tolerances. To accommodate diverse field requirements, we offer a wide range of standard and custom dimensions:
Wire Diameter: 4 mm or 5 mm high-tensile steel.
Mesh Sizes: 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm (Custom patterns available).
Geotextile Liner: 2 mm heavy-duty non-woven polypropylene.
Color Palette: White, Beige, Military Green, or customized tactical colors.
Design: Foldable and collapsible for optimized logistics and rapid manual or mechanical deployment.
Common Specs of Defensive Barriers | |||||||
| غرض | Height (inch) | Height (m) | Width (inch) | Width (m) | Length (inch/ft) | Length (m) | Cell |
| DB-1 | 4’6″ | 1.37 | 3’6″ | 1.06 | 32′ | 10 | 9 (1 x 4, 1 x 5) |
| DB-2 | 2′ | 0.61 | 2′ | 0.61 | 4′ | 1.21 | 2 |
| DB-3 | 3’3″ | 1 | 3’3″ | 1 | 32′ | 10 | 10 (2 x 5) |
| DB-4 | 3’3″ | 1 | 5′ | 1.5 | 32′ | 10 | 10 (2 x 5) |
| DB-5 | 2′ | 0.61 | 2′ | 0.61 | 10′ | 3.05 | 5 |
| DB-6 | 5’6″ | 1.68 | 2′ | 0.61 | 10′ | 3.05 | 5 |
| DB-7 | 7’3″ | 2.21 | 7′ | 2.13 | 90′ | 27.74 | 13 (2 x 4, 1 x 5) |
| DB-8 | 4’6″ | 1.37 | 4′ | 1.22 | 32′ | 10 | 9 (1 x 4, 1 x 5) |
| DB-9 | 3’3″ | 1 | 2’6″ | 0.76 | 30′ | 9.14 | 12 (2 x 6) |
| DB-10 | 7′ | 2.13 | 5′ | 1.52 | 95′ | 30.5 | 20 (4 x 5) |
Click to view → البيانات الفنية للحاجز الدفاعي العسكري

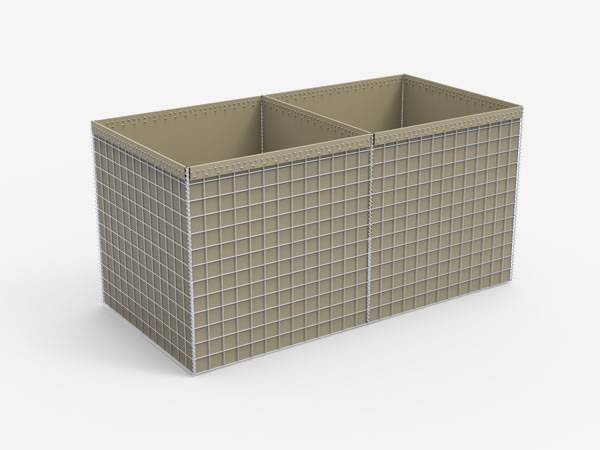

Structure Of Military Defensive Bastion Barriers
The structural integrity of our bastion barriers relies on a sophisticated “collapsible cage” design. Each unit features high-strength welded wire mesh panels that we connect using spiral joints. This configuration allows you to ship the system flat and expand it on-site into a series of interconnected cells.
Furthermore, by utilizing precision automated welding lines at our facility, we ensure that the joints withstand immense internal pressure without buckling. We also UV-stabilize the integrated non-woven geotextile liner and bond it securely to the mesh. This ensures the unit retains the fill material while facilitating necessary moisture drainage.
Materials Of Military Defensive Bastion Barriers
Because durability in extreme environments is non-negotiable, we source only the highest quality substrates to ensure long-term performance:
Corrosion-Resistant Steel: We utilize Hot-Dipped Galvanized Steel Wire or premium Zinc-Aluminum Alloy (Galfan) wires. These materials provide superior protection against oxidation, even in high-salinity or humid tropical climates.
Non-Woven Polypropylene: We engineer our 2 mm heavy-duty geotextile for high puncture resistance and tensile strength. Consequently, the barrier remains intact even under the impact of fragments or floodwaters.
How to Choose the Right Bastion Barrier?
Selecting the appropriate barrier depends on the specific threat level and the deployment environment. As a technical-led manufacturer, we recommend that you consider the following factors:
Wall Height vs. Threat: For vehicle barriers and blast protection, we recommend larger units with 5 mm wire diameters to ensure maximum mass and stability.
Environmental Exposure: In coastal or high-moisture zones, our Zinc-Aluminum alloy coating serves as the best choice to prevent premature rust.
Logistics: For rapid emergency response, our foldable designs allow you to transport thousands of meters of protection in a single standard container.
التطبيقات
Our barriers offer versatile solutions for both high-stakes combat and civil emergencies:

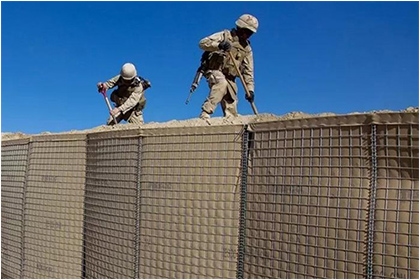

Military & Defense: These units provide critical protection for bunker walls, vehicle checkpoints (ECP), ammunition storage, and temporary firing positions. They effectively mitigate small arms fire and blast fragments.
Security & Protection: Security teams deploy our barriers for border control, critical infrastructure protection (power plants/oil refineries), and perimeter fencing.
Civil & Emergency: Engineering crews find these barriers highly effective for large-scale flood control, erosion management, and the construction of temporary retaining walls.
Military Defensive Bastion Barriers | Made In China | Supply to Worldwide
Sourcing your Military Defensive Bastion Barriers from our Chinese manufacturing facility guarantees a product that balances cost-efficiency with uncompromising quality. We operate a fully integrated supply chain, which enables us to scale production rapidly during urgent defense or humanitarian crises.
Global Logistics: We utilize our expertise in packing and shipping foldable units to minimize freight costs to any global destination.
Quality Control: Our in-house lab subjects every batch to rigorous tensile and galvanization thickness testing.
Direct Support: We provide comprehensive installation guidance and customized sizing to meet unique terrain requirements.
