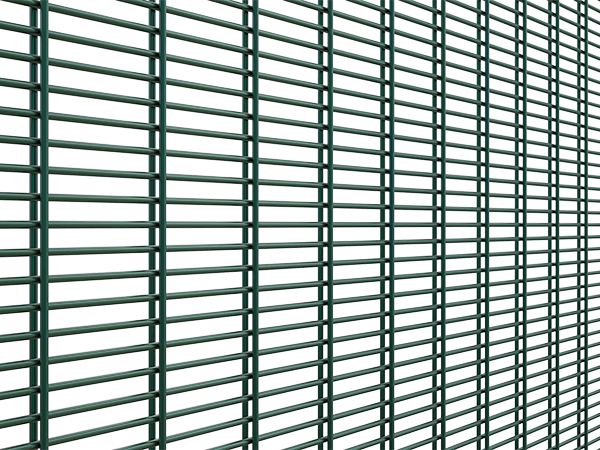

358 Double Vertical Wire Fence serves as a superior security solution for high-risk perimeters. As a specialized fencing factory, we weld these panels using two layers of vertical wire sandwiching a horizontal wire layer. This unique “sandwich” design increases the mesh’s overall cut resistance by 30% compared to standard designs. ملكنا factory-engineered panels offer extreme rigidity and low wind resistance, making them ideal for integration with electronic detection systems.
Structure of 358 Double Vertical Wire Fence

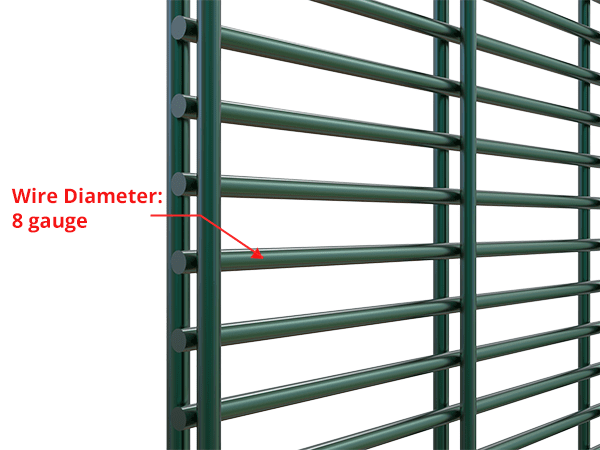

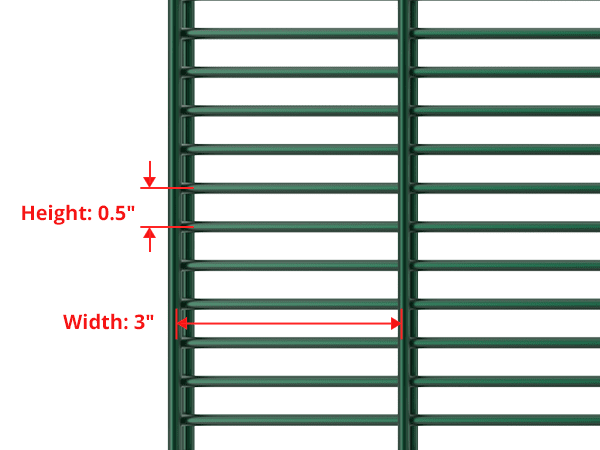

The structure of this fence relies on its reinforced triple-wire configuration. Our automated welding lines secure two 8-gauge vertical wires against a single horizontal wire. This creates a dense 3″ × 0.5″ mesh pattern that prevents intruders from gaining finger or toe holds. The added vertical layer strengthens the panel without reducing visibility. Consequently, security personnel can monitor the perimeter clearly while the fence maintains its structural integrity.
Feature of 358 Double Vertical Wire Fence
Compared to standard 358 high-security mesh, our double vertical wire version offers distinct advantages:
Superior Strength: The extra vertical layer makes the mesh significantly harder to bend or break.
Vandalism Resistance: The double-layer construction creates a formidable barrier that slows down and deters intruders.
Highest Security: This mesh protects critical infrastructure with the most demanding safety requirements.
Strict Compliance: Our panels meet specific regulatory standards that mandate reinforced double-wire designs.
مواصفة
ملكنا منشأة التصنيع produces these fences to precise industrial tolerances:
Post & Clamp Bar Options:
2.0 m Post: 60 mm × 60 mm (2.7 m long)
3.0 m Post: 80 mm × 80 mm (3.8 m long)

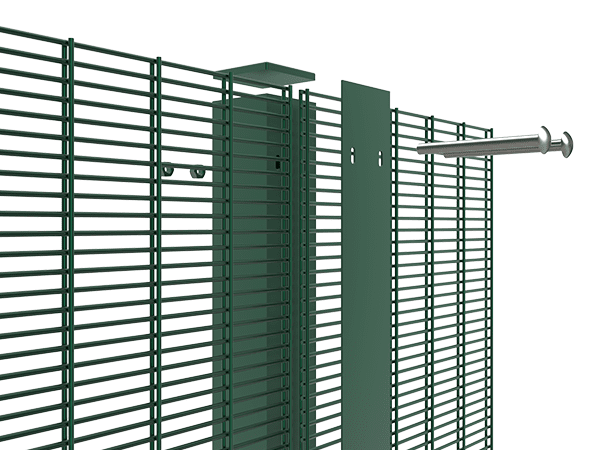

Clamp Bars: Available in 5 mm, 6 mm, or 7 mm thicknesses.
تثبيت

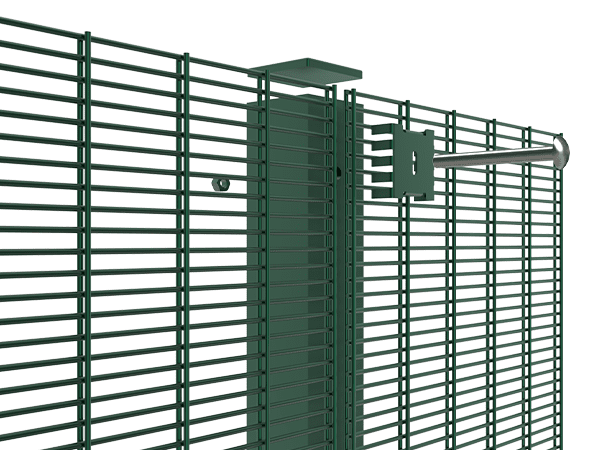

We design our system for maximum efficiency on-site. Our factory-supplied hardware includes specialized clamp bars and spider clips to streamline the assembly process. These components ensure a tight, secure fit between the panel and the post. This method reduces labor time and guarantees a professional, tamper-proof finish for your security project.
358 Double Vertical Wire Fence | Made in China | Supply to Worldwide
Sourcing your 358 Double Vertical Wire Fence from our China-based facility ensures military-grade quality at wholesale prices. We manage the entire production chain—from wire drawing to final coating—to maintain consistent excellence.
Global Export: We provide seaworthy packaging and reliable logistics for international delivery.
Customization: We tailor heights and coating colors to your specific project needs.
Expert Support: Our technical team offers installation guidance and detailed shop drawings.
